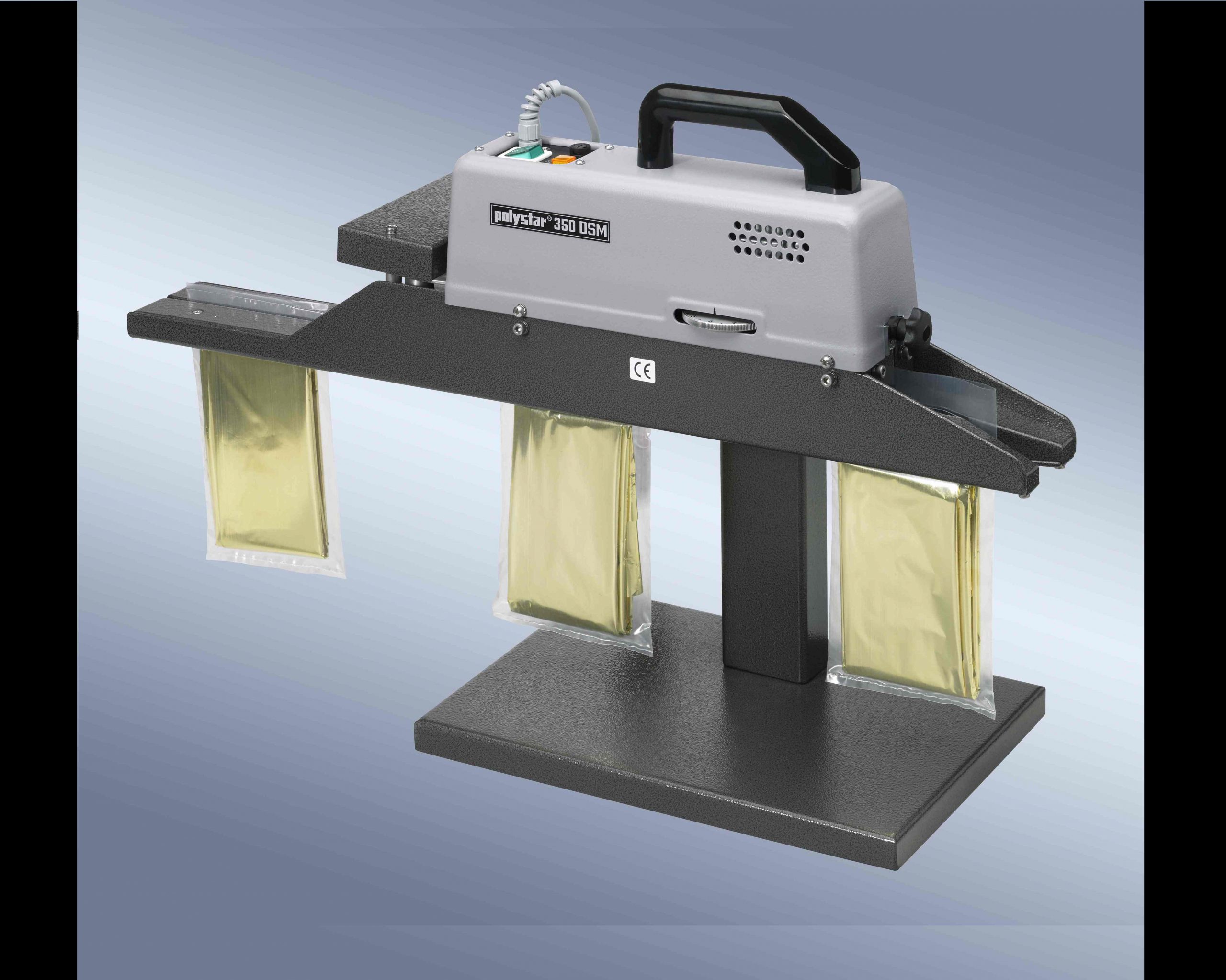

The fastest of our polystar® Continuous welding machines can achieve 10 m/min, but the standard speed of 5 meters per minute is not exactly slow either. The universal usability makes them indispensable wherever polyethylene bags up to 0.60 mm thick need to be sealed in rows to make them airtight, dustproof and watertight.

All polystar® Continuous welding machines of the 350 DSM series are permanently heated and have spring-loaded cooling rails that automatically adjust to the respective film thickness. The constant contact pressure that this guarantees ensures equally constant welding results with a 4 mm wide weld seam. While the standard version polystar® 350 DSM is suitable for lightweight bags up to 150 g, the TE version can even carry bags weighing up to 500 g completely independently. Heavier bags up to 25 kg can also be reliably sealed with appropriate support, e.g. from a roller conveyor or conveyor belt.

SPECIAL FEATURES:
Continuous seal machine for sealing polyethylene films up to a thickness of 600 my (2×0.30 mm).

Features

Seal speed 5.5 m/min.

Seal height 4 mm.

Fitted with internal bag transport.

Supplied without table stand.

However, fitted with a cutting unit just above the seal.

Specifications

BRAND

Polystar

TYPE

350 DSM-TE-SV
