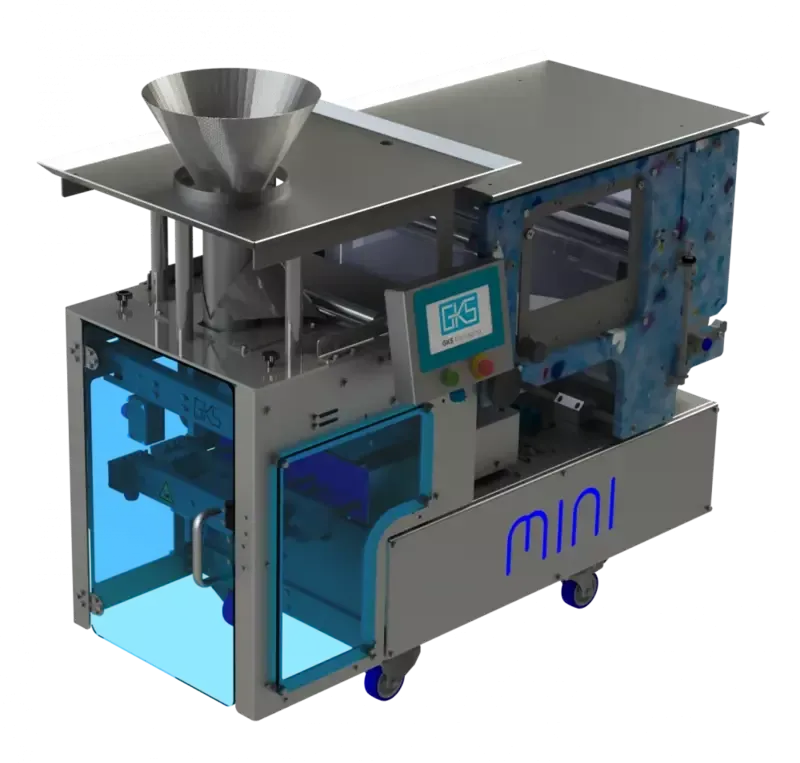

The MINI form, fill and seal machine is optimized for efficiently and automatically creating bags from a flat film off of a reel. The machine is suitable for packing many types of food as well as non-food products and can be used in smaller production areas as well as industrial environments. Manual filling is also possible.
Features
- Efficient and flexible
- Compact modular "frameless" design
- Robust build quality
- Allen Bradley PLC and electrical components
- Servo driven film transport for accurate bag length
- Ergonomic film support with film tensioning system and film brake
- Fully automatic packaging solution in 1 m3
Specifications
- Bag width (pillow)
- 40 - 250 mm
- Max. bag length
- Endless mm
- Max. bag length per sealing step
- 170 mm
- Max. production speed
- 65 bags/min
- Film thickness
- 25 - 120 ยต
- Core diameter
- 76 mm (3")
- Max. film width
- 360 mm
- Max. outer diameter of film roll
- 320 mm
- Voltage
- 230 V, 50/60 Hz
- Power output during production
- 1,200 Watt
- Air consumption
- 6 bar, 156 l/min
- Dimensions
- 1330 x 650 x 1140 mm (D x W x H)
