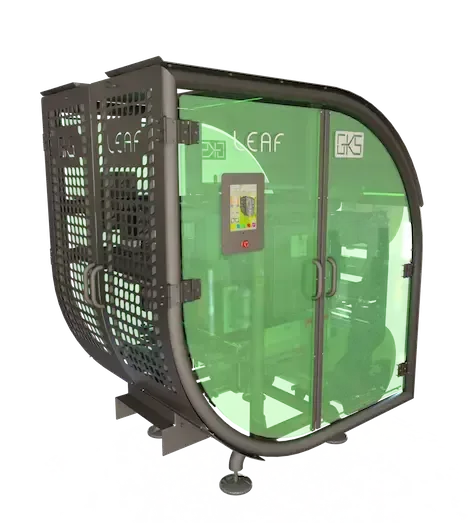

LEAF is specifically developed to produce paper bags out of 100% recyclable and compostable paper mono material. LEAF has a revolutionary design and is constructed out of stainless steel and other recyclable materials. LEAF is partly built out of recycled OCEAN PLASTIC, thus helping to reduce plastic waste. Together with the open construction for optimized accessibility, it makes the machine very easy to clean and maintain.
Features
- 100% developed for paper
- High-pressure sealing
- In-line net applicator
- Special former set for paper
- Modular construction
- Allen Bradley PLC and electrical components
- iPad interfaces on both sides
- Machine status by smart LED lighting
- Low CO2 footprint
Specifications
- Bag width (pillow)
- 190 - 400 mm
- Max. bag length
- Unlimited mm
- Max. bag length per sealing step
- 480 mm
- Max. production speed
- 25 bags/min
- Film thickness
- 25 - 150 ยต
- Core diameter
- 76 mm (3")
- Max. film width
- 840 mm
- Max. outer diameter film roll
- 600 mm
- Voltage
- 400 V, 50/60 Hz, 16A
- Power during production
- 2500 Watt
- Air consumption
- 8 bar, 500 l/min
- Dimensions
- 1950 x 1250 x 2000 mm (D x W x H)
