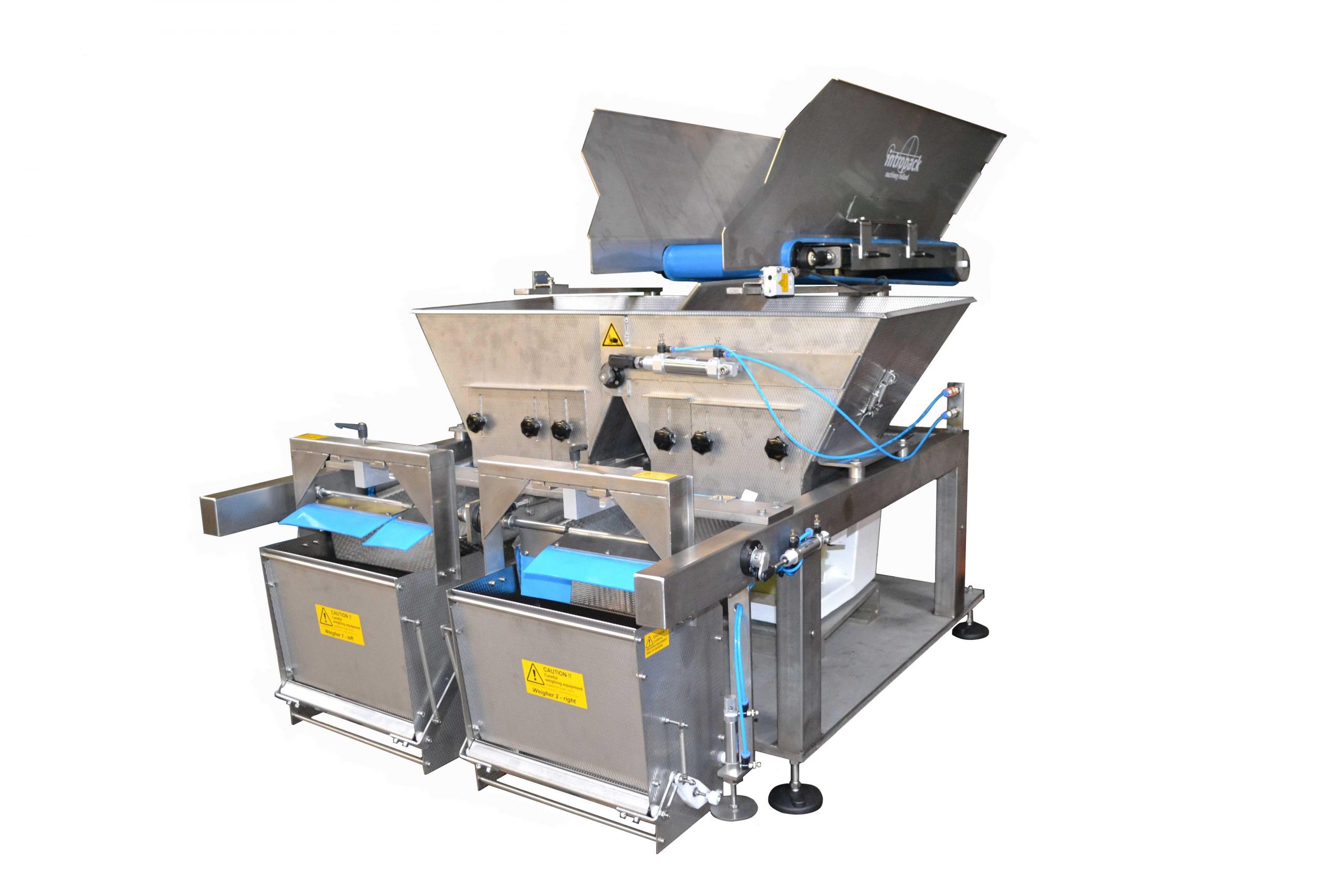

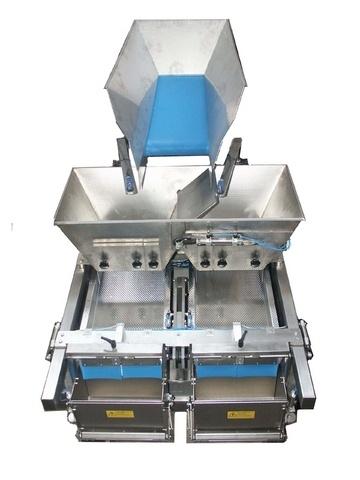

When the supply hopper is filled with product, the product is dosed, by an electromagnetic driven vibrating feeder, towards the scale.
A keyboard with digital display, controls the weighing cycle of the machine. The product is dosed to the scale in two stages (pre-dosing & fine dosing) which separately can be set.
After the setpoint weight is reached the vibrating conveyor stops and the scale can be opened manually or automatically.
Feutures:
-P.L.C. controlled and easy to operate
-Pre-dosing & fine dosing
-Standard MASTER / SLAVE control for second weighing machine
-Compact dimensions
-Weighing pan of 10 liter
-Deliverable in various models
-Suitable for manual operation or automatic operation (with a packaging machine).
-Quick snap locks, for easy cleaning
-Stainless steel frame
Specifications
- BRAND
- Galaxy Advance AGF
- TYPE
- AG 312 (double head)
- CATAGORY
- Weighers
- WEIGHING RANG
- 3000 gram
- CAPACITY
- Until ca. 30 p/min.
- POWER SUPPLY
- 230 Volt & compressed air
- DIMENSIONS
- (LxWxH) 1850 x 1200 x 1100 mm
