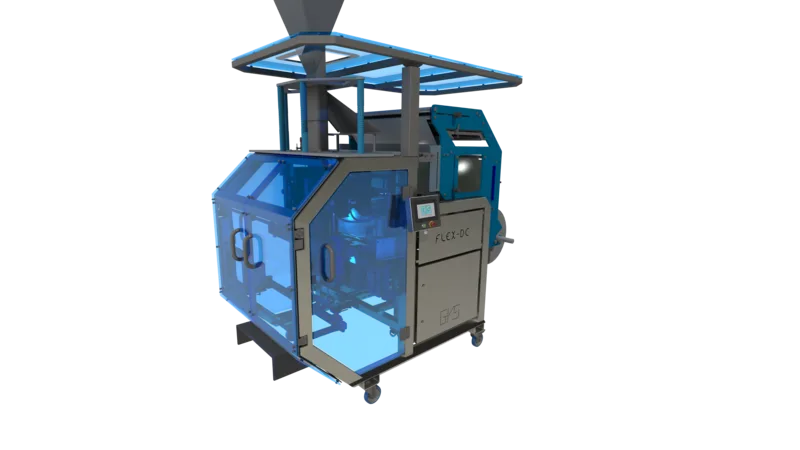

The FLEX-DC vertical forming, filling and sealing machines turns PE, PP and laminated packaging film into Doy bags, Corner seal bags and pillow bags from a flat film on a roll. Thanks to a continuously heated sealing system with interchangeable seal profiles, the machine can handle this wide variety of packaging materials. The bag length is determined by an encoder, which guarantees a high degree of accuracy.
Features
- Stainless steel machine construction; open design
- Robust build quality
- Modular construction
- Allen Bradley PLC and electrical components
- Servo driven vacuum film pull belts
- Stainless steel frame with PMMA cover plate over the entire film lane
- Photocell for bag length detection with pre-printed film
- End of film detection
- Sliding doors with bearings for optimal access
- Film splice table
- Ergonomic film roll support with film tensioning system and pneumatical film brake
- Low power and air consumption
- Full colour touch screen
- Machine in mobile frame
Specifications
- Bag width pillow (max)
- 350 mm
- Bag width Doy (max)
- 285 x 80 x 5 mm
- Bag width Quadro (max)
- 200 x 150 mm
- Max. bag length
- Unlimited mm
- Max. bag length per sealing step
- 350 mm
- Max. production speed
- 45 bags/min
- Film thickness
- 25 - 120 µ
- Core diameter
- 76 mm (3")
- Max. film width
- 750 mm
- Max. outer diameter film roll
- 500 mm
- Voltage
- 400V, 50/60 Hz
- Power during production
- 1,200 Watt
- Air consumption
- 6 bar, 600 l/min
- Dimensions
- 2250 x 1400 x 2635 mm (D x W x H)
