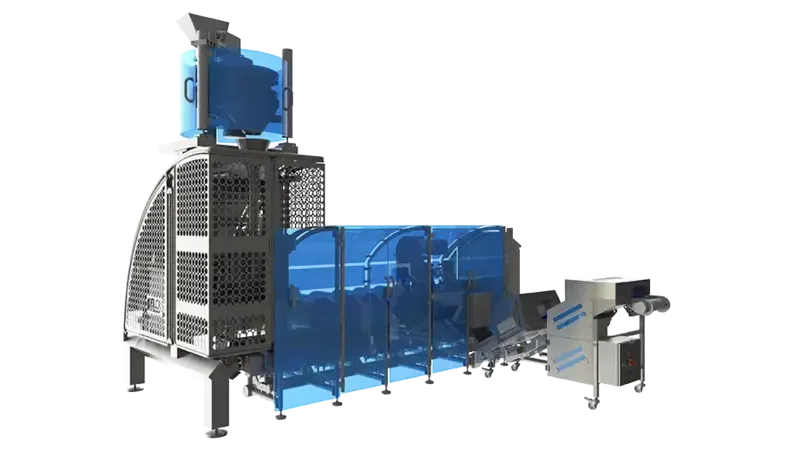

BRIC is specifically developed to shape, fold and label all common brick shapes on a vertical form, fill and seal machine with granular product. After the bag is dropped from the vffs-machine, its bottom is sealed flat, it is compressed and the air is expelled. Subsequently the top is cut and sealed. Finally the bag is folded once or twice and a closing label is applied.
Features
- Modular brick bag unit to fit most VFFS-machines
- All common bag fold and label options
- Servo driven bag holders
- Stainless steel; hygienic open design
- Plug and play exchangeable function modules
- Small footprint
- Modular design, easy maintenance
Specifications
- Bag dimensions (footprint)
- 40x80 - 100x200 mm
- Bag length
- 100-250 mm
- Max. production speed
- 50-60 bags/min
- Voltage
- 400 V, 50/60 Hz, 32A
- Power during production
- 2000 Watt
- Air consumption
- 8 bar, 1500 l/min
- Dimensions
- 3900 x 1250 x 1600 mm (D x W x H)
