Description

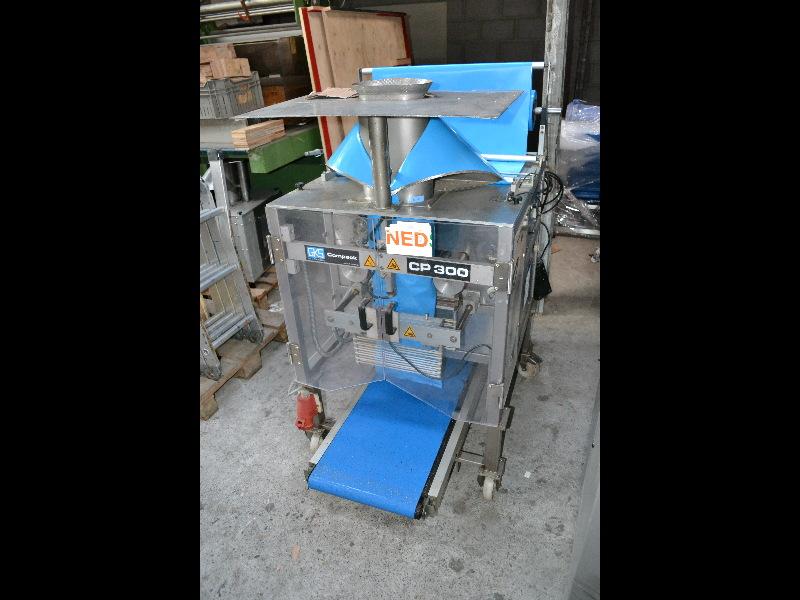

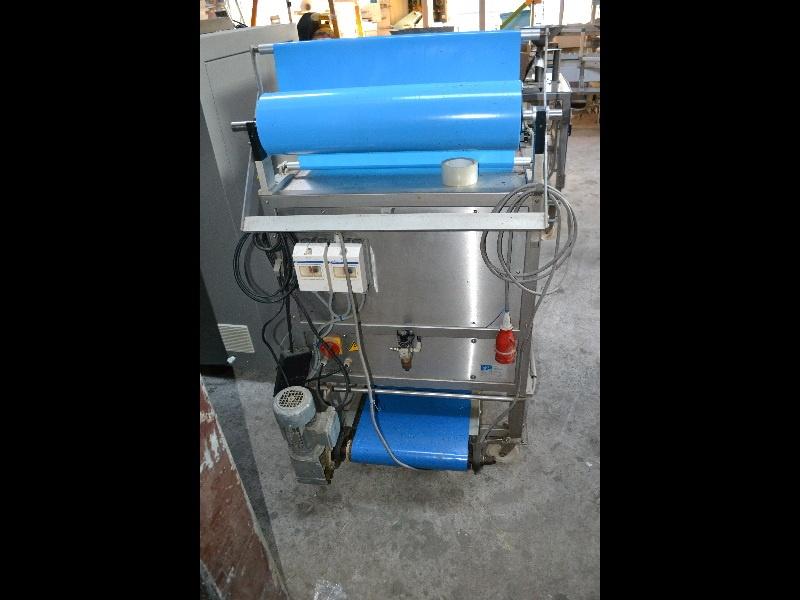

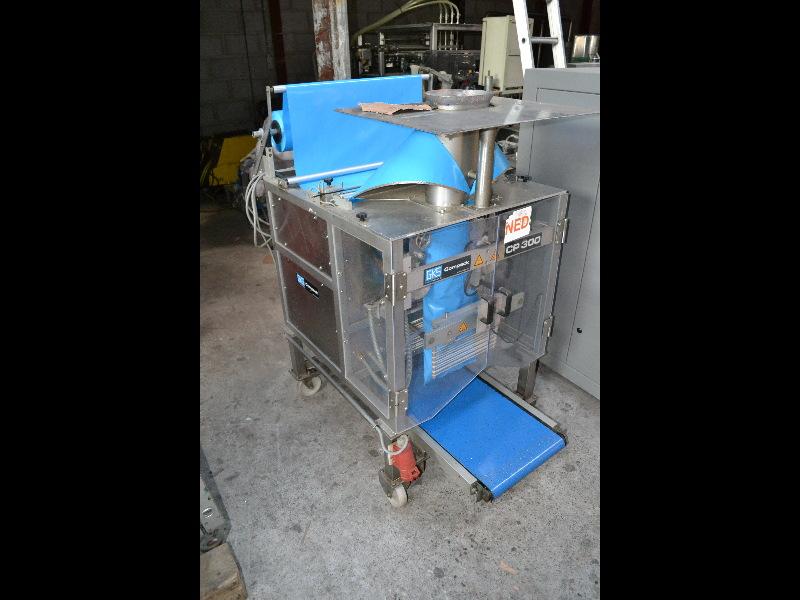

| COMPACK CP 300i | |
| BRAND: | Compack |
| TYPE: | CP 300i |
| CATEGORY: | V.F.F.S. |
| FORMAT: | Bag width: 50-300 mm, Length: until 900 mm (2 x 450 mm.sealsteps) |
| POWER SUPPLY: | 230 Volt, 50Hz., 1000 Watt & compressed air |
| CAPACITY: | Until ca. 20 p/min |
| DIMENTIONS: | 1750 x 770 x 900 mm. (LxWxH) |
| CORE DIAMETER FOIL ROLL: | 76 mm |
| OUTER DIAMETER FOIL ROLL: | 320 mm |
| MAX. WIDTH FOIL ROLL: | 500 mm |
| FOIL THINKNESS: | 20-80 Micron |
DETAILS:
Vertical, form, fill and seal machines form flat film into a bag by using a specially designed former set. The Compack offers you the opportunity to either fill the bag by hand or to simply connect the machine to an automatic weigh or dosing system for a complete automated packing solution. Once the bag is filled the machine seals and cuts the bag automatically. The Compack can pack any type of free flowing product, food and non food.
Features:
-Air expellers pillow executed
-Double foil band transport
-Digital bag-length-determined i.c.w. encoder on the film
-Machine is placed on wheels
-Feet pedal
-Photocell for printed foil
-Including 1 former set pillow, for bag width 200 mm
-Photocell
-Horizontal conveyor belt
